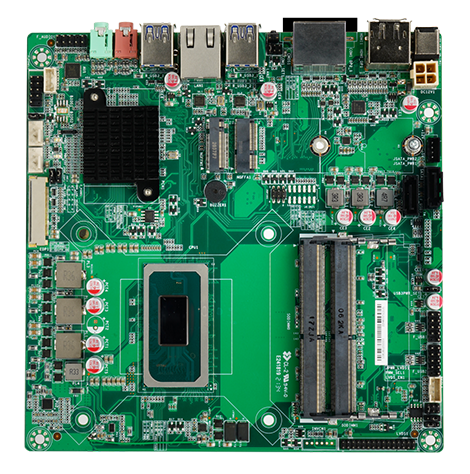

ZO-HM570-1C2L
Detailed
Support for Intel ® Core ™ 11th generation H-series processors
2 * SO-DIMM DDR4 3200MHz Max64GB
Supports multiple display outputs: DP/HDMI/LVDS/EDP, any four display
On board 1 * Realtek RTL8111H Gigabit Ethernet card (Colay 8111G, optional dual network)
4 * USB2.0, 4 * USB3.0
2 * SATA, 1 * M.2 M Key (supports Pcie X4 and SATA SSD)
1 * M.2 E Key, (supports Pcie X1, WiFi+Bluetooth modules)
Can support automatic power on
DC 12-19V input

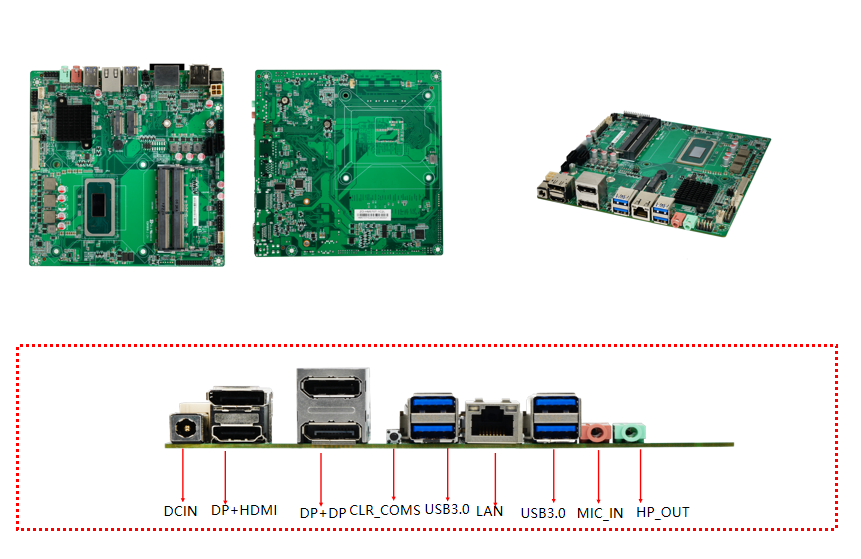

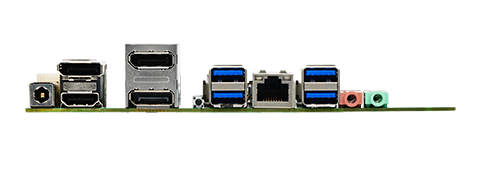

0755-83650405 | CPU | Intel ® Core ™ 11th generation H-series processors | Post I/O interface | 1 * DCIN 1 * DP+HDMI port 1 * DP+DP port 2 * USB3.0 port 1 2 * USB3.0 Port 2 (1 * LAN optional) 1 * LAN port 1 * MIC-IN interface 1 * LINE OUT interface |
| Chipset | Intel® MH570 | ||
| Display chip | Intel ® integrated graphics | ||
| Display output | DP/HDMI/LVDS/EDP | ||
| Multi display support | Any four sets of four displays (copy, expansion mode) | ||
| USB | 4*USB2.0 ；4*USB3.0 | Internal I/O | 1 * LVDS pin 1 * EDP socket 1 * SPEAKER pin 1 * GPIO pin 2 * SATA_ Port 1 * SATA_ PWR 2 * USB2.0 pin (expandable 4 * USB2.0) 1 * 4PIN ATX 1 * F_ AUDIO pin 1 * F_ PANEL pin 1 * eSPI pin 1 * BKCL pin 1 * CLR_ CMOS jump cap 1 * PWR_ EDP Jump Hat 1 * LVDS_ EN jump cap 1 * JME jump cap 1 * AUTO_ ON jump cap (self start when powered on) 1 * C_ FAN 1 * S_ FAN |
| Memory | 2*SO-DIMM DDR4 3200MHz Max64GB | ||
| sound effects | On board Realtek ALC269HD audio decoding controller | ||
| Network card | On board 1 * Realtek RTL8111H Gigabit Ethernet card (optional dual network) | ||
| storage | 2*SATA Port; 1*M.2 M Key (Supports Pcie X4 and SATA SSDs) 1*mSATA | ||
| expansion slot | 1*M.2 E Key(support Pcie X1、WIFI/Bluetooth) | ||
| I/O chip | IT8613E | ||
| BIOS | AMI BIOS | ||
| power supply | DC 12~19V power supply | ||
| Cooling System | Requires self equipped 115X CPU heat sink | ||
| Environment | Working temperature: 0-60 ℃; Storage: -20~75 ℃ | ||
| 0%~95% relative humidity, non condensing | |||
| Size | 170mm X 170mm |
