LAN-3230MTH-6L

LAN-3230MTH-6L

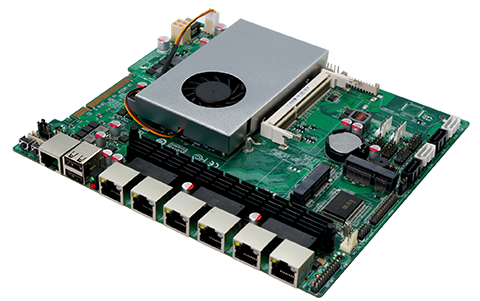

Detailed

Support for Intel ® Bay Trail I5-3230M Processor

Supports single channel SO-DIMM, DDR3 1333MHz, Max8GB

Supports VGA pin display output

On board 6 * Intel I225-V network card (transmission rate 2.5Gb)

Supports 6 * USB2.0

1 * mSATA; 2 * SATA Port

1 * mPCIE, supporting WiFi/Bluetooth module expansion

DC 12V power supply

Product Specification

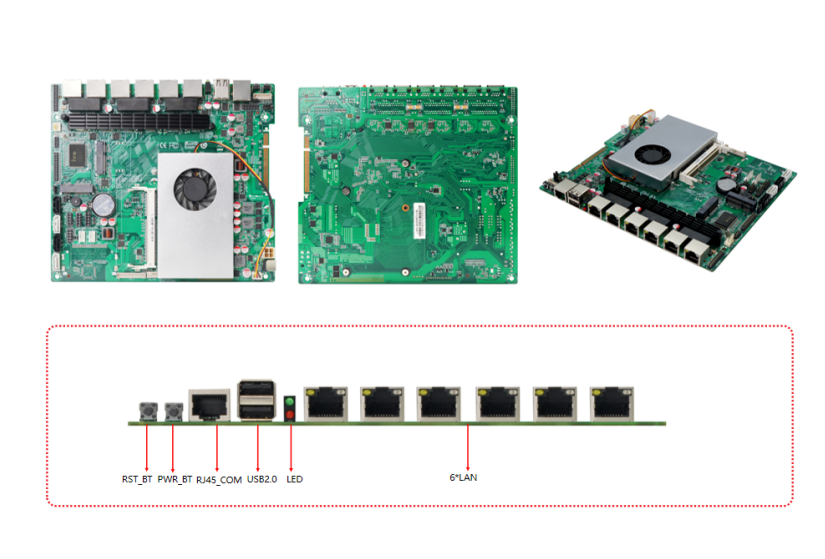

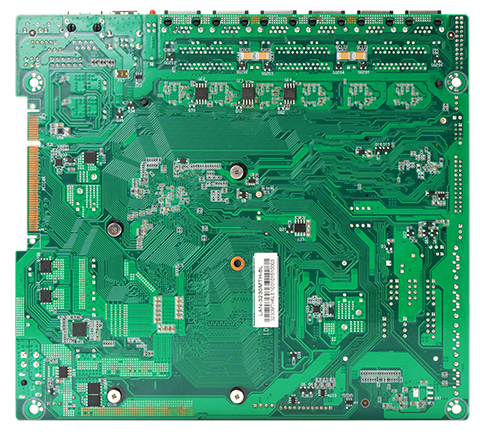

Detail drawing

Data download

CPU	Intel®Bay trail I5-3230M Processor	Post I/O interface	1 * DC_ IN port
Chipset	Intel® SOC		1 * RST_ BT button
Display chip	Intel ® Core graphics card 4000		1 * PWR_ BT button
Display output	VGA display output		1 * RJ45_ COM Port
Multi display support	/		2 * USB2.0 port
USB	6*USB2.0		1 * LED status indicator light
Memory	1*SO-DIMM DDR3 1333MHz Max8GB		6 * LAN port
sound effects	/	Internal I/O	1 * LAN_ LED pin
Network card	On board 6 * Intel I226-V network card (transmission rate 2.5Gb)		2 * SYS_ FAN pin
storage	1mSATA,1SATA		1 * PRINT pin
expansion slot	1 * mPCIE, supporting WiFi/Bluetooth/4G module expansion;		4 * SATA socket
			2 * SATA_ PWR pin
			1 * GPIO pin
I/O chip	IT8712F-I		2 * F_ USB2.0 pin (expandable 4 * USB2.0)
I/O chip	IT8712F-I		1 * F_ PANEL pin
BIOS	AMI BIOS		1 * VGA_ H pin
power supply	DC/4PIN ATX 12V power supply		1 * CPU_ FAN pin
Cooling System	Equipped with fan and radiator		1 * PCIE8X slot
Environment	Working temperature: 0-60 ℃; Storage: -20 ℃~75 ℃		1 * COM pin
Environment	0%~95% relative humidity, non condensing		1 * JPS2 pin
Size	200X180mm		1 * ATX_ IN socket
